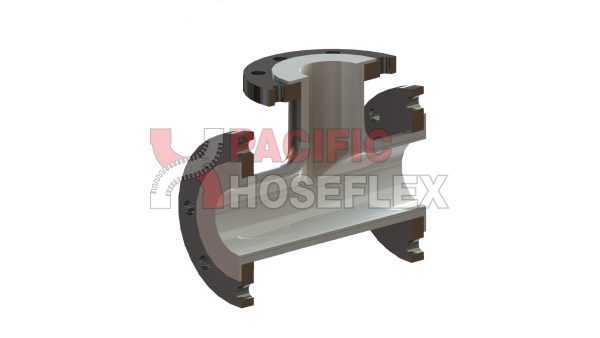

Lined Piping Systems – Tee
Construction: Smoothbore
Pipe: Carbon Steel / Stainless Steel (Other specialty metals on request )
Liner: PTFE, PFA, PVDF, PP, FEP, ETFE
Size Available : 1’’ – 12’’ (Larger sizes upon Request)
Vacuum: Full Vacuum
Temperature: -30ºc to 260°c
Lined Piping Systems – Tee / Plastic Lined Pipe Use:
Our range of products are used in various industries such as Chemicals, Refineries, Pesticides, Petrochemicals, Steel, Food-Processing, Beverages, Alcohols and Acids, Pharmaceuticals, Circuit Breakers, Fertilizers & Desalination.
Standards:
ASTM F1545
AS4041:2006 Class 1
ASME IX:2010
Low | Med | High | |
---|---|---|---|
Flexibility | |||
Cycle Life | |||
Pressure Rating | |||
Chemical Resistance | |||
Wall Thickness |
