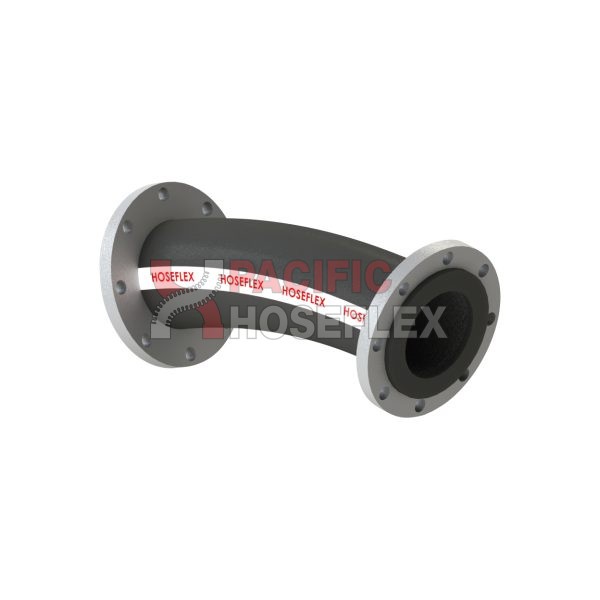

Pre-formed Bend Hoseflex® Ceramic Hose
Colour: Black
Tube: NR/BR blend Super Abrasion Resistant Rubber
Cover: Abrasion, UV and Ozone resistant rubber
Reinforcement: Spiral Synthetic fabric and wire helix
Size Available: DN80 to DN1200
Temperature: -30°C / + 70°C
Pre-formed Bend Hoseflex® Ceramic Hose Use:
Designed for suction and discharge duties. Used for tight bend radius allowing movement and misalignment. Applications include slurry and water transfer, dewatering and tailings pipelines as well as transfer of chemicals, hydrocarbons and acids. Ceramic preformed bend mining hose is designed to be extremely resistant
to abrasion even in high material flows and speeds, preventing material build-up.
The ideal solution for high wearing mining and aggregates applications.
Low | Med | High | |
---|---|---|---|
Flexibility | |||
Cycle Life | |||
Pressure Rating | |||
Chemical Resistance | |||
Wall Thickness |
Specifications
Notes:
The design is based on a 90 Degree Bend
The Bends are built on the radius, straights ends can be added in design state
