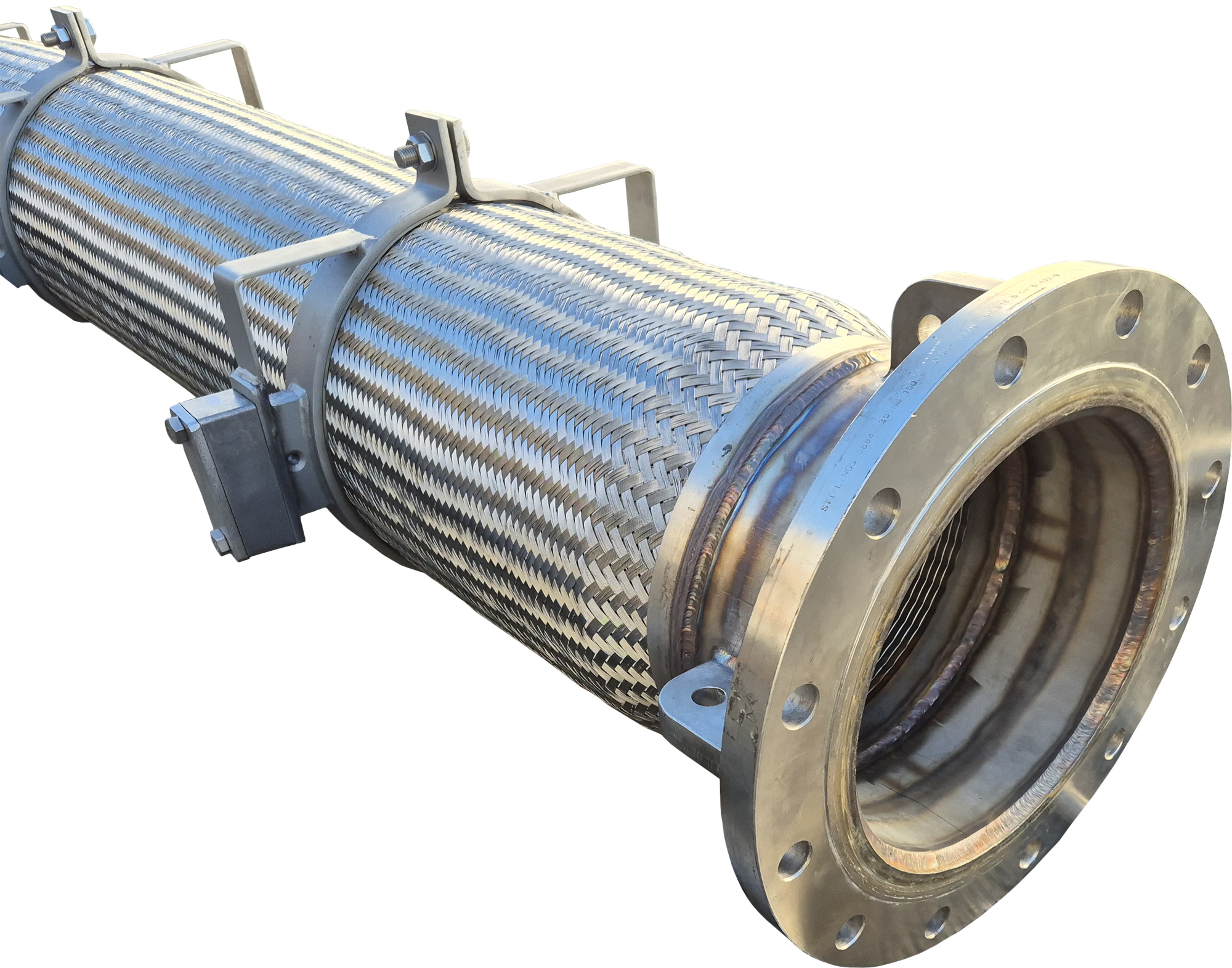

VITALFLEX® TTMA Drop Hose
All parts come in contact with Oxygen of stainless steel are remain oil and grease free.
An additional mechanical protection can be achieved by use of an outer interlock profile hose. Inner liner (interlock hose) is predominantly used for the oxygen supply to improve the flow condition and reducer the pressure loss.
Application:
In steel production, the pig iron produced in a blast furnace, and oxygen is lanced onto this molten iron at regular intervals. This encourage combustion of excess carbon and part of unwanted companion elements.
The movements of lance hose over several meters in a vertical as well as a horizontal direction is made possible by flexible lance hose which are installed in 180 degree bend position (also know as a travelling loop).
Standards:
Corrugated Metal Hoses: ISO 10380
AGA Approved: AS 4631 (upon request)
Watermark Approved: WMTS 520 (upon request)
Welding Compliant: AS 4041- Class 1(upon request)
Seismic Rated: AS 1170 (upon request)
Activfire Certified: AS 2118.1 (upon request)
