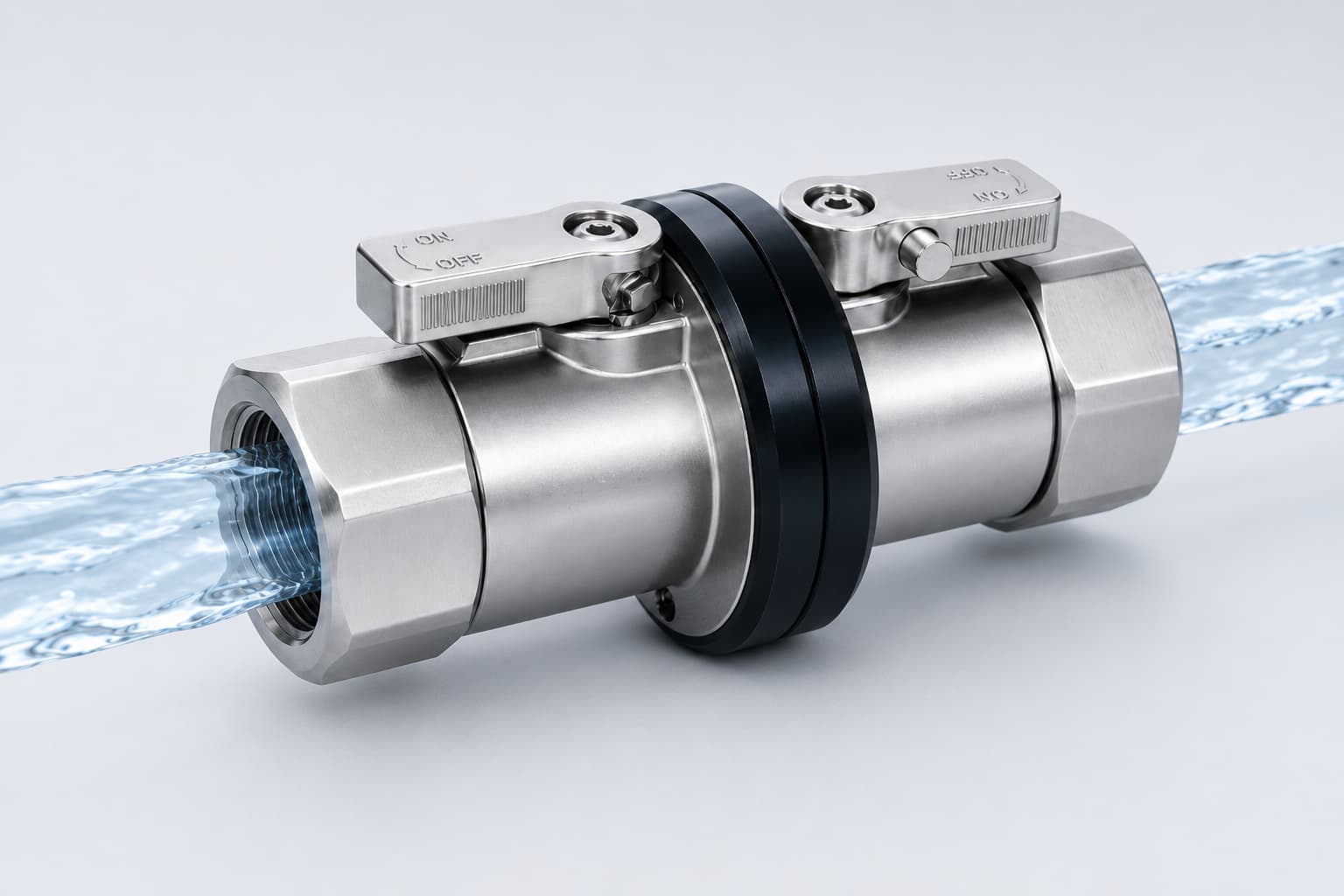

The T’LOK-S is a high-performance quick coupling designed for safe, clean and efficient liquid cooling connections. Its integrated valve and coupling system allows fast connection and disconnection while helping prevent leaks, accidental opening and incorrect installation.
Built for next-generation thermal management systems, the T’LOK-S features a dual interlock safety mechanism that ensures the valve only opens once the coupling is fully engaged. The aligned handles provide a clear visual confirmation of a secure connection, while the locking button helps prevent accidental release during operation.
Manufactured from durable 304 stainless steel with EPDM seals, the T’LOK-S is suitable for demanding operating environments and is available in a range of sizes, materials and connection options.
With high flow capacity, low pressure loss and multiple connection configurations, the T’LOK-S is ideal for data centres, industrial cooling systems, process equipment and other applications requiring dependable liquid transfer and thermal management.
Available sizes: 1″, 2″, 3″ and 4″
Body material: 304 stainless steel
Seal material: EPDM
Working temperature: -40°C to +120°C
Working pressure: Up to 16 bar / 232 psi

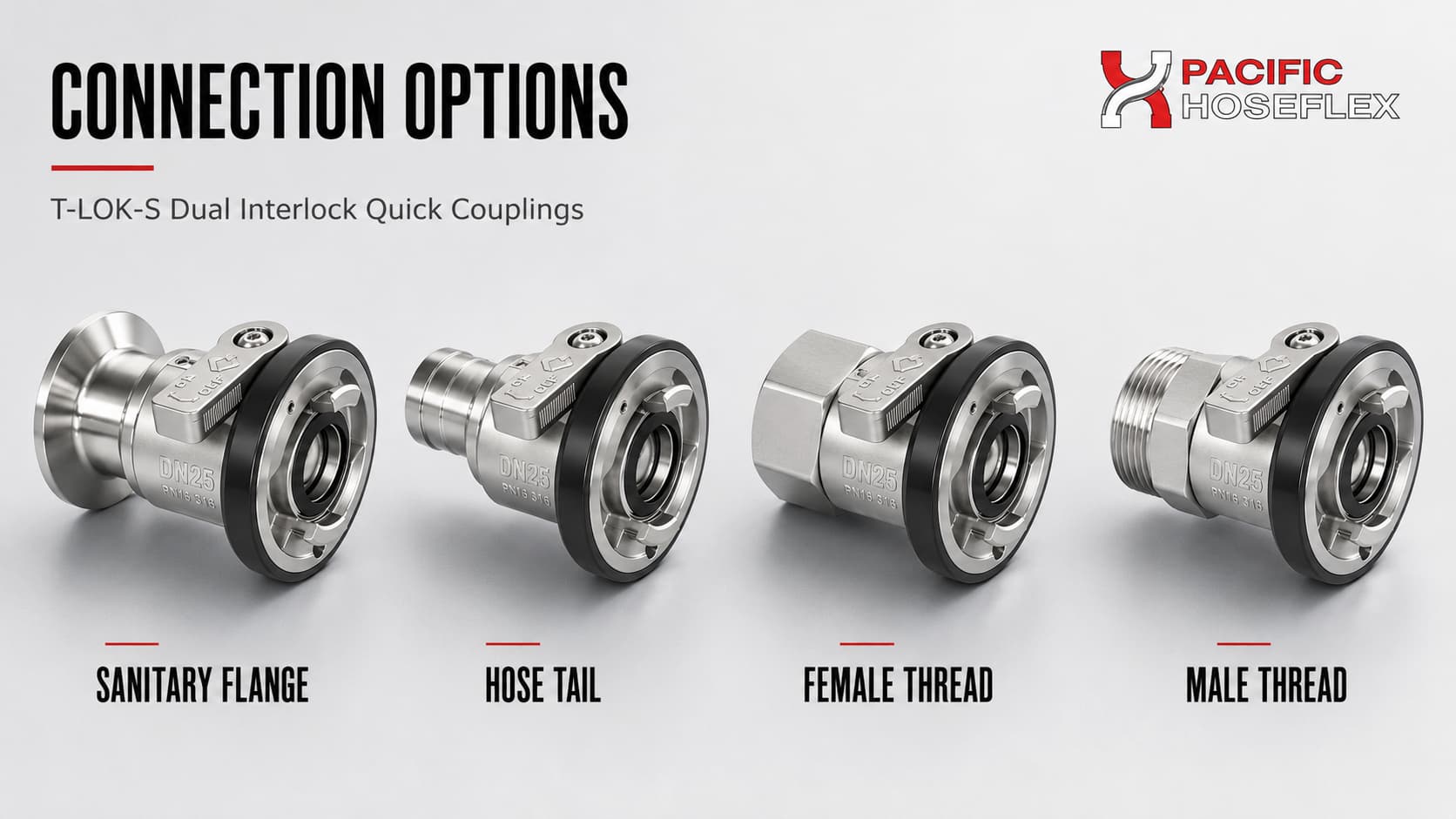

Connection options: Hose tail, female thread, male thread and Tri-Clamp
