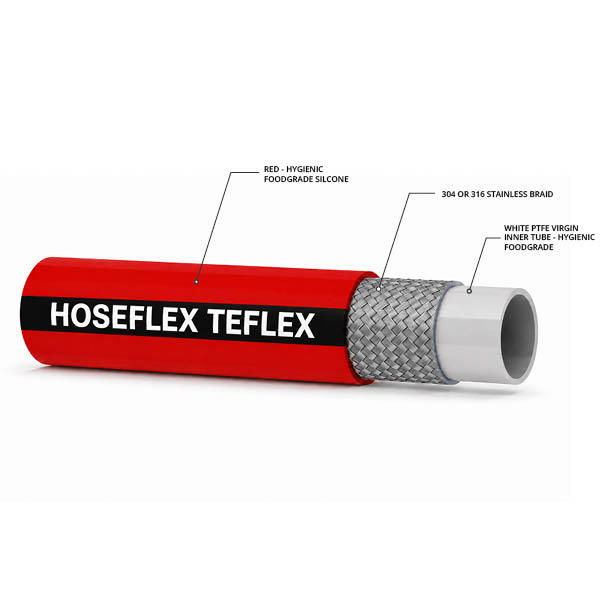

Teflex Silicone Jacket PTFE
Part No.: TEFLEX
Construction: Smoothbore
Profile: High Flexibility / High Pressure
Tube Available: PTFE Virgin Inner Tube impregnated fiberglass braid
Braid Available: 304 / 316 Stainless Steel
Cover: Silicone
Size Available: 1/4’’ – 1’’
Temperature: -70°C +204°C
Sintered/Permeation: Slow Sintered (medium level of permeation)
Teflex Silicone Jacket PTFE Use:
Liquid food and beverage transfer, also suitable for air, water, chemical, oil and automotive applications Hygienic food grade cover ideal for food and pharmaceutical applications.
Standards:
FDA Approved, Accepted by the U.S. Coast Guard,
PTFE Perfluorocarbon Resins meets FDA 21 CFR 177.1550
Low | Med | High | |
---|---|---|---|
Flexibility | |||
Cycle Life | |||
Pressure Rating | |||
Chemical Resistance | |||
Wall Thickness |
Specifications
Silicone Jacket Colour
SRD = Red
SBK = Black
SBL = Blue
SWH = White
Download Specifications Sheet
