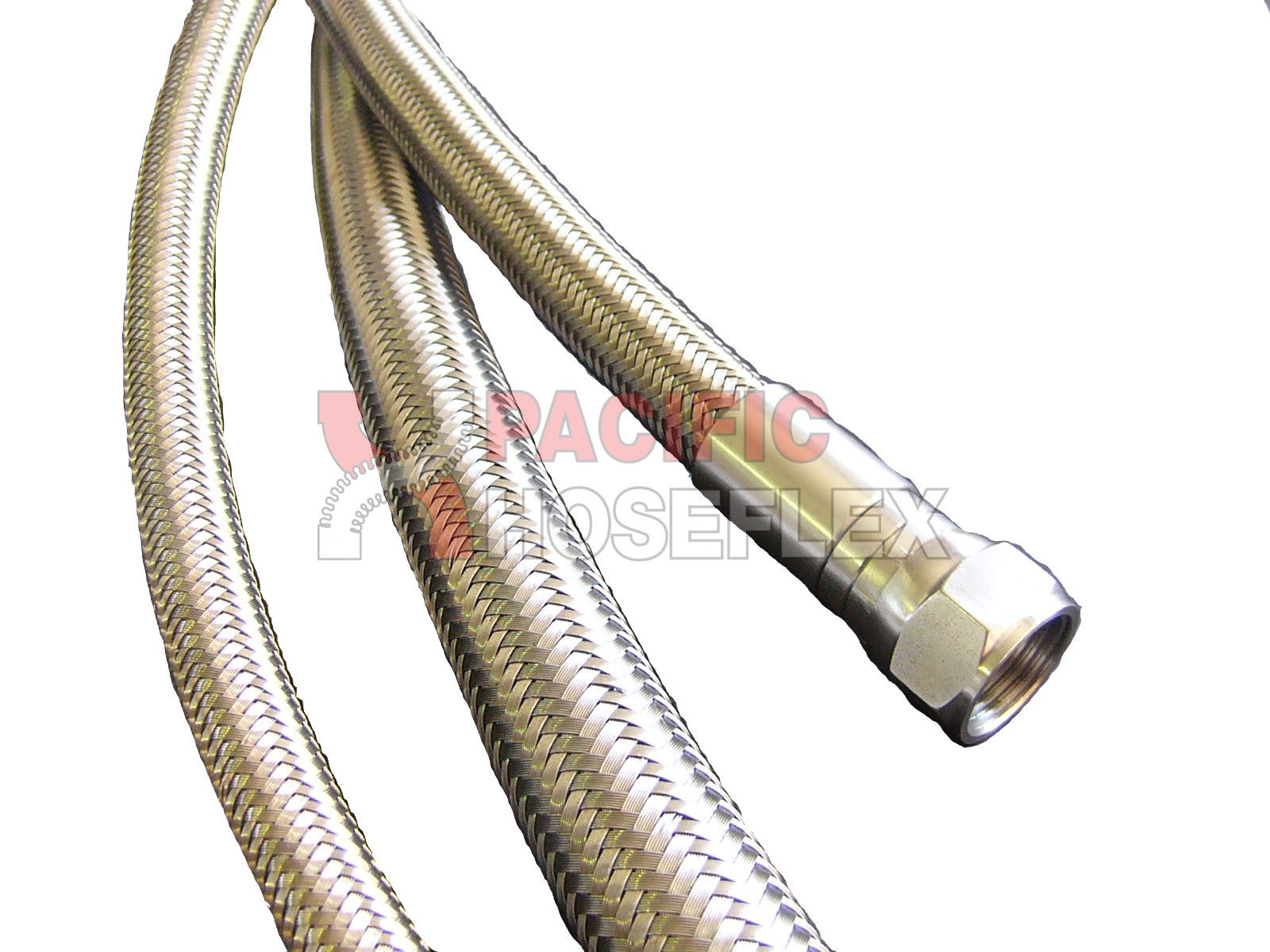

Smoothbore Double Braid Gas PTFE

Smoothbore Double Braid Gas PTFE Use:
Slow sintered PTFE hose that is ideal for gas delivery applications due to lower permeation. Double braided to provide higher pressure rating for high pressure gas applications.


  • Part 1. PTFE-E.P.D.M 1.6.1.C.E.4_12
  • ISO 1402 – Rubber and plastic hose and assemblies – hydrostatic testing
  • SAE J517 – Dimensional and performance Specification
Size: 1/4"
Temperature Range: -60°C +260°C
Profile: Smoothbore
Standards: ISO 1402 SAE J517
Categories: Gas PTFE Hoses


  • Part No.: PTFE-HP
  • Construction: Smoothbore
  • Profile: Low Flexibility / High Pressure
  • Tube Available: PTFE Virgin Inner Tube
  • Braid Available: Double 304 Stainless Steel Braid
  • Cover: Optional Hytrel Cover, use Part Number PTFE-HP-06-H
  • Size Available: 1/4’’
  • Temperature: -60°C to 260°C
  • Note: Only available as an assembly
  • Sintered/Permeation: Slow Sintered (medium level of permeation)
