VAPFLEX

Industrial Rubber Hose – VAPFLEX Use:
Suitable for delivery of CSG, Liquefied Petroleum Gas, LPG (Liquid or Gas) and Natural Gas.

Size: 1/2" - 4"

Material: Synthetic Rubber

Temperature Range: -50°C +70°C

Profile: Smoothbore

Standards:

Industry: Agriculture Bio Tech Chemical Defence Force General Purpose Industrial HVAC Industrial and Power Offshore Oil & Gas Onshore Petroleum Space Transportation Water Treatment

Categories: Flexible Gas Hoses Gas Industrial Rubber Hoses

Information

Part No.: IH-VAPFLEX

Approvals:

AGA AS NZS 1869 Class C / H

Standards:

Hose physical properties are manufactured in accordance to EN ISO 1402
Ozone resistant and manufactured in accordance to EN ISO 7326
Electrical resistance by using a metallic wire connection to conduct static electricity and manufactured on accordance to EN ISO 8031

Rubber hoses and hose assemblies for liquefied petroleum gas, LPG (liquid or gaseous phase), and natural gas up to 25 bar (2,5 MPa) to EN 1762

Industries:

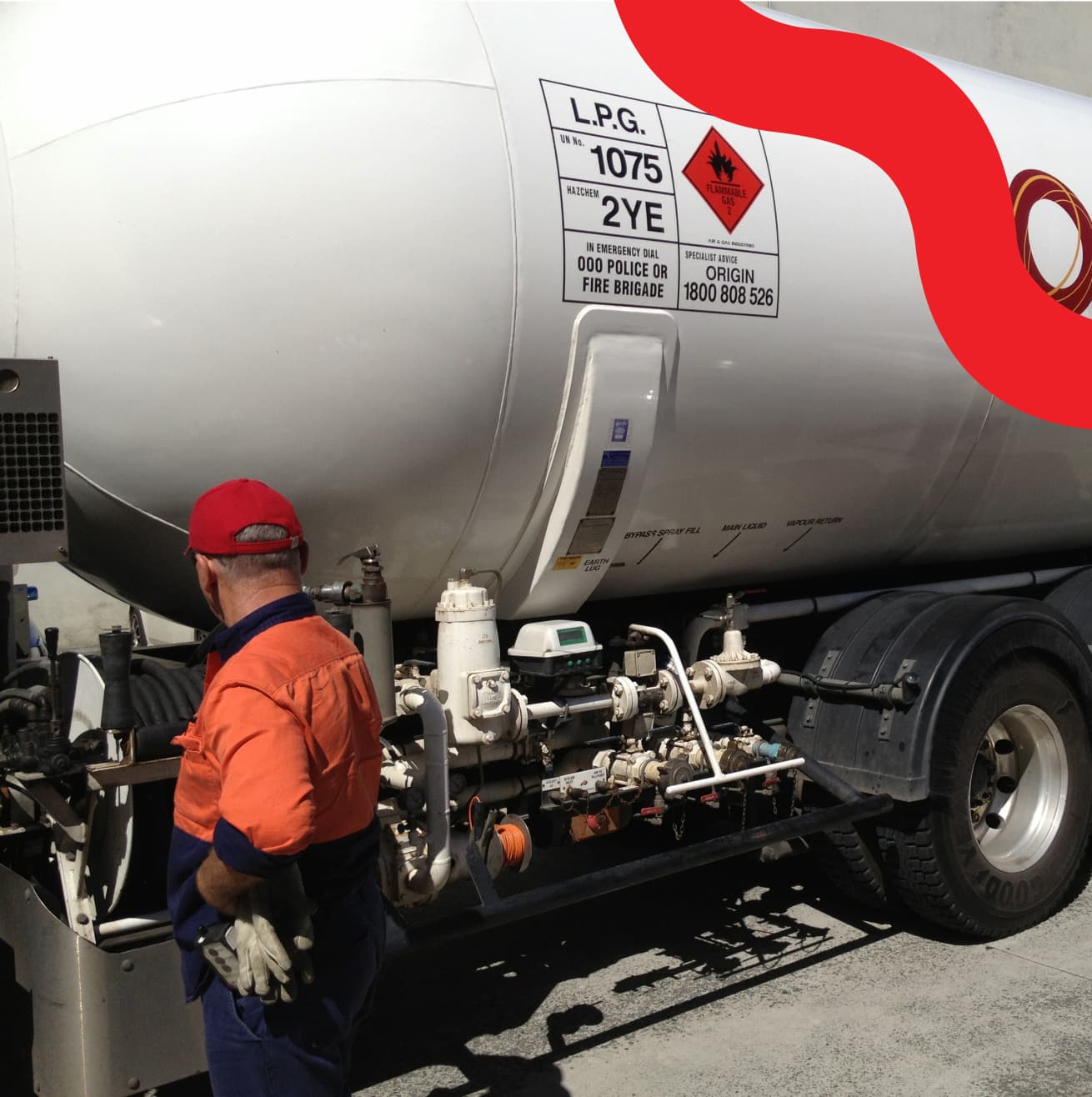

Road / tanker transfer
Fuel stations

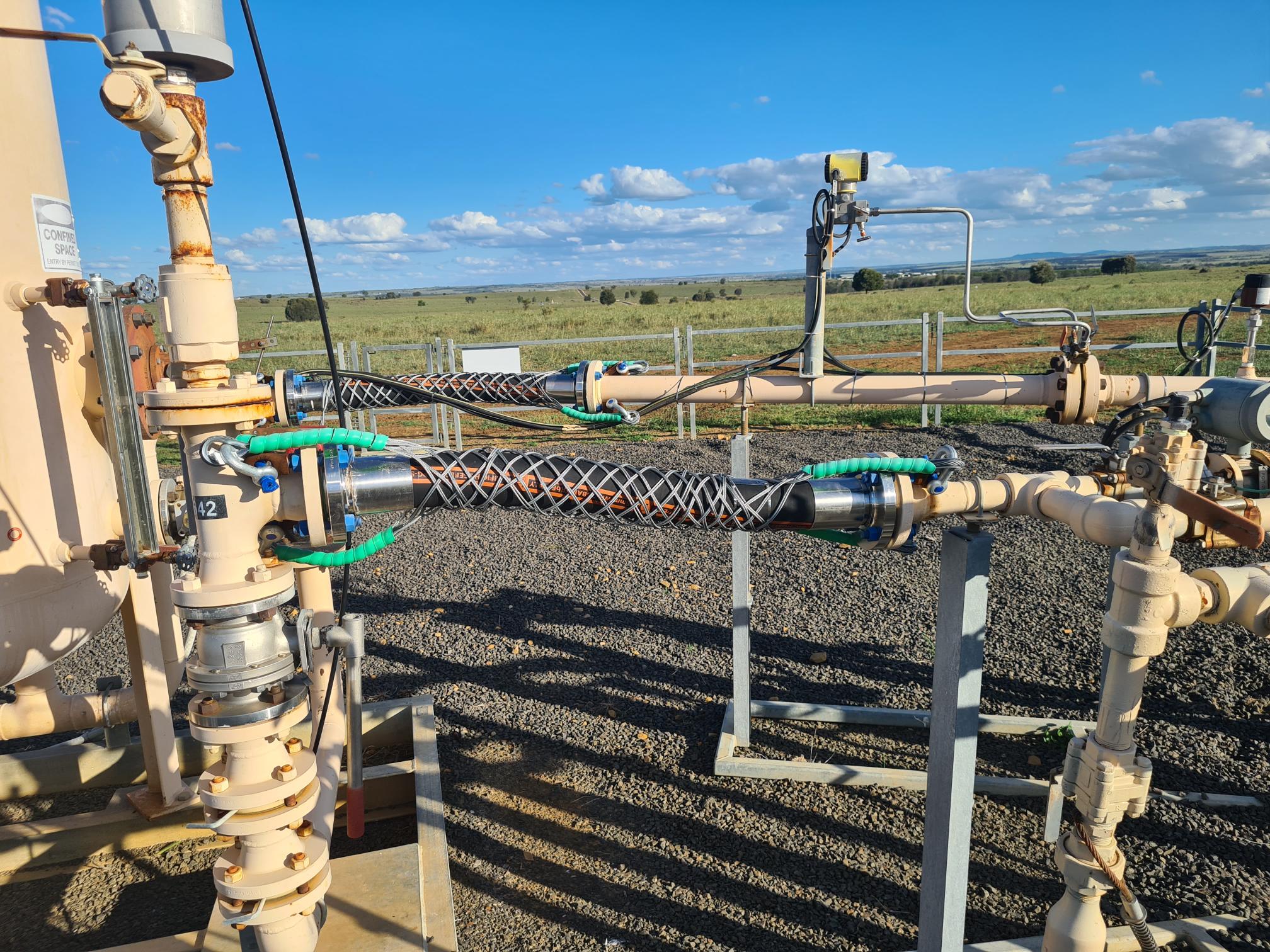

Coal Seam Gas Wells

Medium:

LPG
LNG
Natural gas
CSG

https://vimeo.com/396894739

Download Specifications Sheet

Request Quote

Reliable Industrial Hose

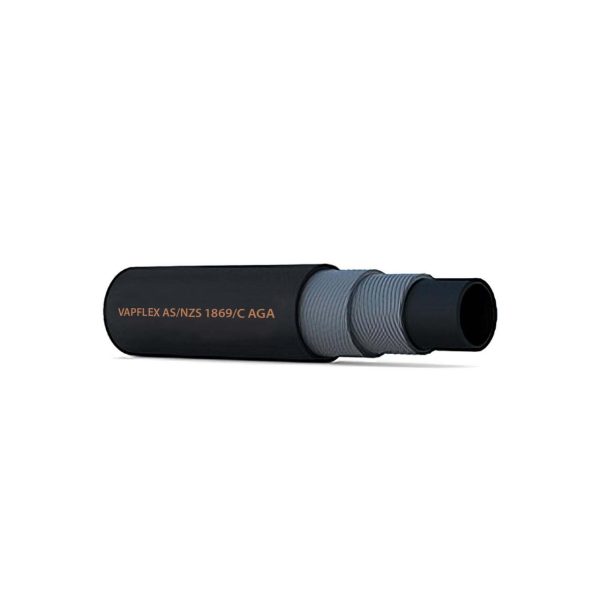

Introducing Vapflex, your ultimate solution for the safe and efficient delivery and transfer of CSG, Liquefied Petroleum Gas (LPG), Natural Gas, and Town Gas. Engineered with precision and reliability in mind, Vapflex features a robust construction designed to withstand the rigours of industrial applications. Its black antistatic smooth synthetic rubber tube provides excellent flexibility and resistance to abrasion, while layers of woven braid and spirally wound textile material reinforcement ensure durability and strength even under high pressures.

Enhanced Performance in Demanding Environments

With optional electrical resistance provided by an embedded cross-linked copper wire helix, Vapflex is equipped to safely handle static electricity during suction operations. For added versatility, an embedded metallic spiral wire is available for suction purposes, providing enhanced performance in demanding environments. The black synthetic rubber cover is resistant to abrasion, oils, and outdoor exposure, including ozone and weather conditions. The cover is fire-resistant and pricked to allow gas permeation, further enhancing safety and reliability in various industrial settings.

Highest Standards for Quality and Safety

Vapflex is available in sizes ranging from 1/2’’ to 4’’ for Class C applications and 3/4’’ to 4’’ for Class H applications, offering flexibility to suit diverse operational requirements. With temperature ranges from -20°C to +65°C for Class C and -50°C to +65°C for Class H, Vapflex is engineered to perform reliably in a wide range of environmental conditions. Approved by AGA AS NZS 1869 for both Class C and H applications, Vapflex meets the highest standards of quality and safety, making it the preferred choice for industries requiring dependable hose solutions for gas transfer applications.

Frequently Asked Questions

What are the primary applications of Pacific Hoseflex's Vapflex hose?

Vapflex hoses are super versatile and suitable for the delivery and transfer of CSG, Liquefied Petroleum Gas (LPG), Natural Gas, and Town Gas.

What features ensure the durability and reliability of Vapflex hoses?

Vapflex hoses feature a black antistatic smooth synthetic rubber tube for flexibility and resistance to abrasion, reinforced with layers of woven braid and spirally wound textile material for added strength.

How does Vapflex ensure safety during suction operations and other industrial applications?

Vapflex hoses come with optional electrical resistance provided by an embedded cross-linked copper wire helix, effectively managing static electricity during suction operations.

What environmental conditions can Vapflex hoses withstand?

Vapflex hoses are designed to operate in temperatures ranging from -20°C to +65°C for Class C applications and -50°C to +65°C for Class H applications, ensuring reliability in diverse environments.

What approvals, regulations and standards does Vapflex meet?

Vapflex hoses are approved by AGA AS NZS 1869 for both Class C and H applications, meeting industry standards for safety and performance.

What sizes are available for Vaplflex hoses?

Vapflex hoses are available in sizes ranging from 1/2’’ to 4’’ for Class C applications and 3/4’’ to 4’’ for Class H applications, providing flexibility to suit various operational requirements.
