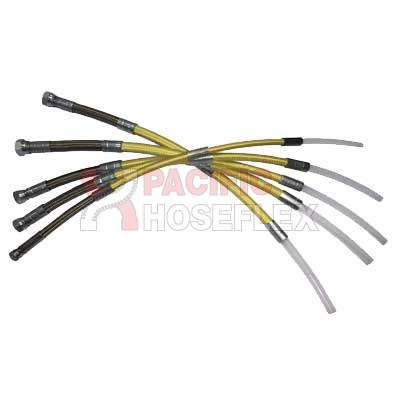

Ultra High Pressure Smoothbore PTFE
Part No.: PTFE-UHP
Construction: Smoothbore
Profile: High Flexibility / High Pressure
Tube Available: PTFE Virgin / Anti-static Inner Tube
Cover: 2 Aramid braids and 1 high tensile 304 maypole wound Stainless steel braid
Size Available: 1/4’’ – 1’’
Temperature: -60°C +260°C
Sintered/Permeation: Slow Sintered (medium level of permeation). 1/4, 3/8”and 1/2” are avaliable in Post Sintered on request (example PTFE-UHP-xx-PS)
Ultra High Pressure Smoothbore PTFE Use:
Ultra high pressure smoothbore PTFE is the lightest weight PTFE Hose on the market. Performing well above its weight due to its excellent routability, bend radius and reduced OD. Used for High pressure gas or fluid
applications.
Standards:
ISO 1402 – Rubber and plastic hose and assemblies – hydrostatic testing
SAE J517 – Dimensional and performance Specification
Low | Med | High | |
---|---|---|---|
Flexibility | |||
Cycle Life | |||
Pressure Rating | |||
Chemical Resistance | |||
Flexibility |
Download Specifications Sheet
Applications
