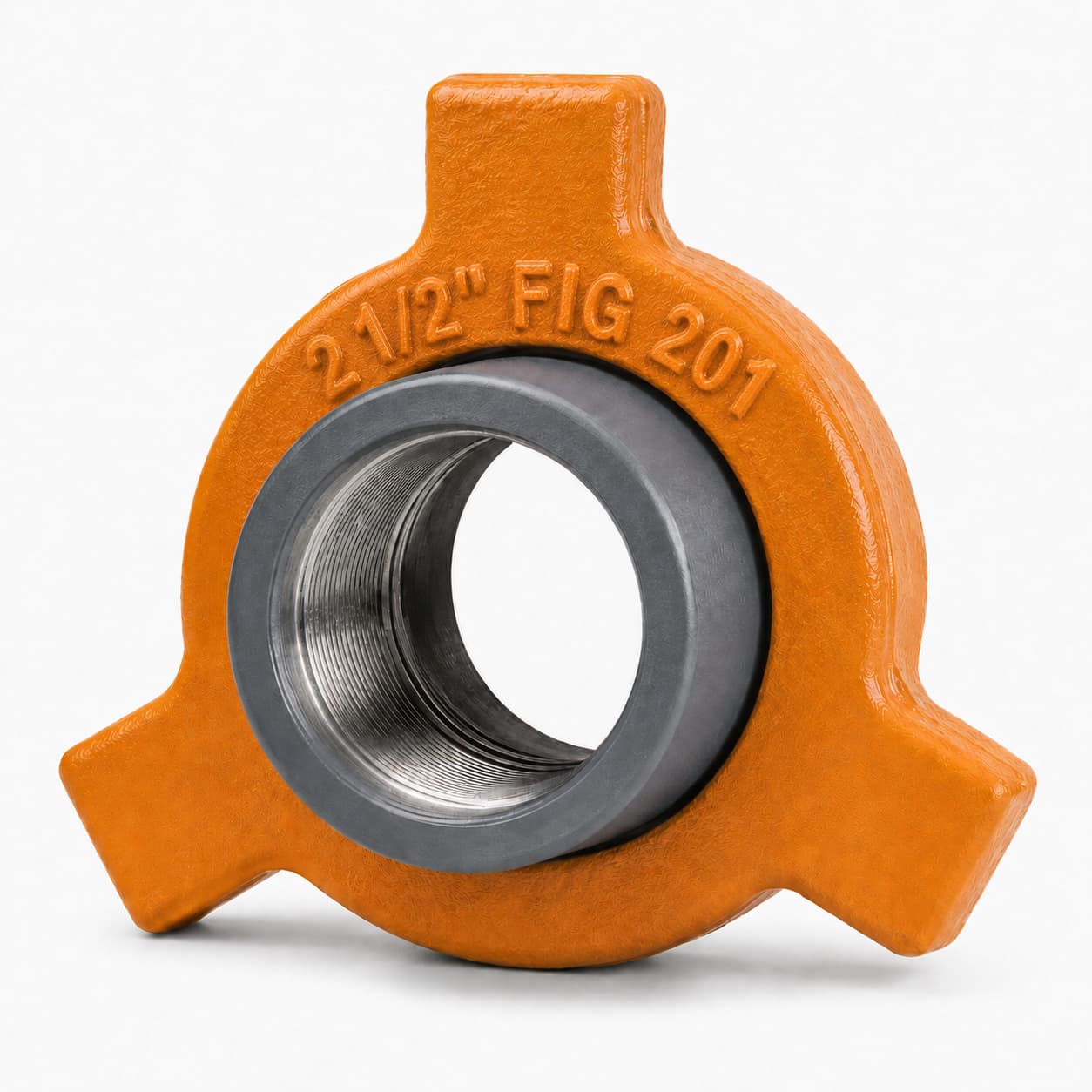

Fig. 201 Hammer Union – Gold Nut, Grey Subs

Fig. 201 Hammer Union – Gold Nut, Grey Subs

The Fig. 201 Hammer Union is a general service union designed for air, water, oil, or gas applications. Featuring a gold nut and grey subs for easy identification, this union is suitable for installations requiring a reliable threaded connection with flat-face subs.

This hammer union is rated for 2,000 PSI cold working pressure and 3,000 PSI test pressure in both standard service and sour gas service. It is available with threaded ends and is designed with flat-face subs. An O-ring is recommended for line connections where straight breakout of short pipe segments is required.

The Fig. 201 Hammer Union is available in 2½” size, with an approximate weight of 8.82 kg.

Key features:

  • Suitable for air, water, oil, and gas applications
  • Standard service rating: 2,000 PSI cold working / 3,000 PSI test
  • Sour gas service rating: 2,000 PSI cold working / 3,000 PSI test
  • Available with threaded ends
  • Flat-face subs
  • O-ring recommended for straight breakout connections
  • Gold nut and grey subs for quick visual identification
  • Available size: 2½
  • Approximate weight: 8.82 kg
Size: 2 ½"
Categories: API Hammer Unions API Products
Request Quote
Fig 201 Hammer Union
  • Fig 201 Hammer Union
